Simulate the power frequency interference induced by the test sample in an alternating current environment of 50Hz and 60Hz.
Simulate the power frequency interference induced by the test sample in an alternating current environment of 50Hz and 60Hz.
electrostatic discharge
Radio frequency radiation
EFT
lightning surge
RF conduction
Power Frequency Magnetic Field
Pulse magnetic field
Damped Oscillatory Magnetic Field
AC voltage drop
Ring wave Common mode conduction Damped oscillation wave Differential mode immunity DC voltage drop Impulse voltage
Radiated Disturbance
Conducted Disturbance 输出场强范围：1A/m~1200A/m，10.1⼨智能化电容触控显⽰屏，操作简单，频率范围：40Hz~120Hz，输出磁场强度、频率实时显⽰。
1、输出场强范围：1A/m~1200A/m
2、800A/m以下不限时⼯作，1200A/m以上4h
3、10.1⼨智能化电容触控显⽰屏，操作简单
4、内置标准库，⽤户直接调⽤标准设置即可测试
5、频率范围：40Hz~120Hz
6、输出磁场强度、频率实时显示
7、支持同频同相测试
| 模拟项目 | 工频磁场抗扰度 | |
| 型号 | ES-PM1200 | |
| 磁场强度 | 1A/m~1200A/m | |
| 磁场分辨率 | 1A/m | |
| 电流畸变率 | ≤5% | |
| 波形 | 正弦波 | |
| 频率 | 40Hz~120Hz | |
| 试验持续时间 | 800A/m以下不限时，1200A/m最长4h | |
| 相位差 | 0~359° | |
|

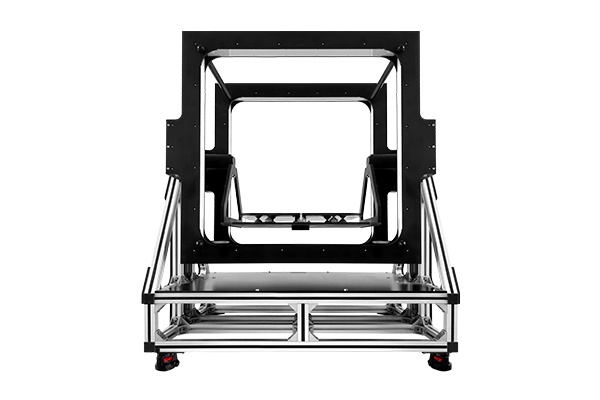

线圈规格
|
双环线圈
|
|
|
场均区
|
0.6m×0.6m×1m
|
|
| 程控 | 支持RS485远程控制 | |
| 操作系统 | Android | |
| 屏幕 | 10.1寸智能化触控显示屏 | |
| 使用环境 | 温度：10℃~40℃,湿度：30%~70% | |
| 设备供电 | AC:100V/220V@50Hz/60Hz | |
