Simulate transient pulse interference generated by automotive electronics along signal lines under various operating conditions

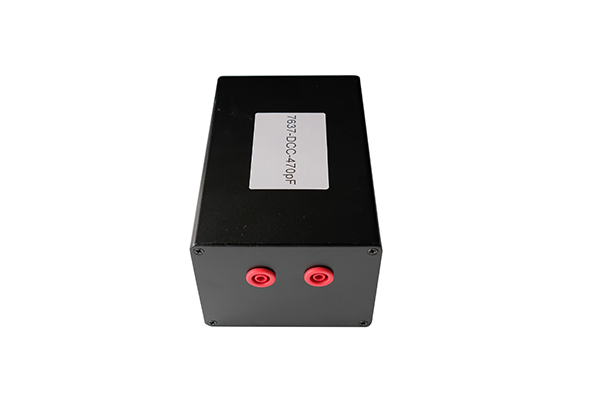

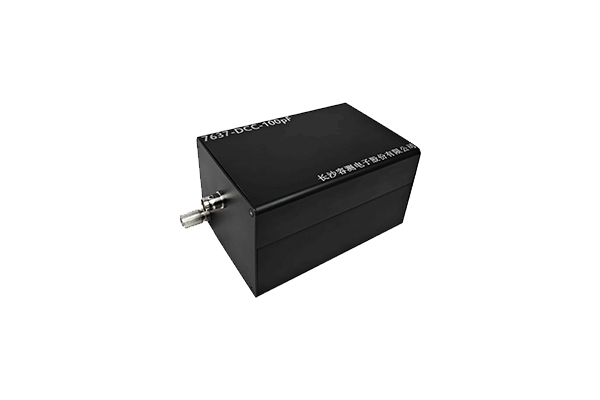

EA-7637-DCC电容耦合盒（DCC法）

EA-7637-DCC电容耦合盒用于汽车电子信号线/控制线直接注入测试，多种电容规格，适用于DCC法快脉冲及慢脉冲测试，符合ISO7637-3和GB/T21437.3标准要求。

◆   Product Features

EA-7637-DCC电容耦合盒用于汽车电子信号线/控制线直接注入测试，多种电容规格，适用于DCC法快脉冲及慢脉冲测试，符合ISO7637-3和GB/T21437.3标准要求。

◆   Compliant with standards
ISO7637-3、GB/T21437.3
◆   Technical Parameter
快速电瞬态脉冲 100pF（平衡线）、100μF（非平衡线）
慢速电瞬态脉冲 470pF（平衡线）、0.1μF（非平衡线）
耦合方式 直接注入
耦合器 CBB电容
外观尺寸 150mm×90mm×75mm

◆   Application Area
汽车零部件测试
◆   Actual Waveform Measurement
