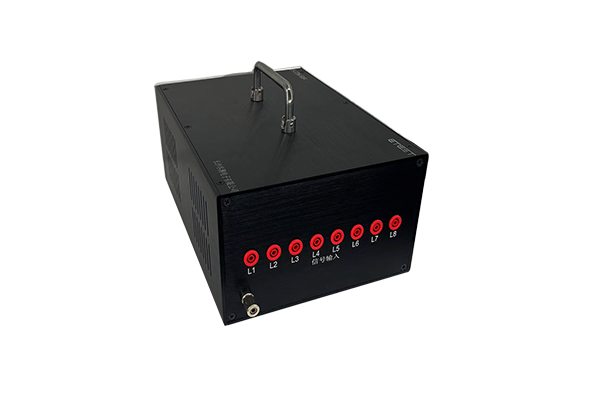

ES-CDN-508A 非屏蔽非对称线耦合去耦网络

将浪涌脉冲施加到非屏蔽非对称的互联线路(信号线/数据线)，需要通过独立耦合/去耦网络来完成。ES-CDN-508A 非屏蔽非对称线耦合去耦网络按照IEC 61000-4-5标准要求，最多可八线测试。

◆   Product Features

1、采用高导磁性材料作为退耦器件
2、最多可八线通信线测试输出
3、耐浪涌冲击能力强，同时迭加浪涌波形


◆   Compliant with standards
 IEC61000-4-5、GB/T 17626.5
◆   Technical Parameter
非屏蔽非对称线耦合去耦网络
型号 ES-CDN-508A
最大耦合脉冲峰值电压 6kV
脉冲波形 开路电压波1.2μs 50μs
短路电流波：8μs 20μs
通讯模式  非屏蔽非对称线
通讯速率 ≤1Mbps
信号最高电压 50V
阻抗 40Ω
耦合方式 CAP/GDT
满足通讯端口 RS232串口、I/0控制线
信号最高电压  50V
产品尺寸 210mm×161mm×340mm
