Simulate the RF interference caused by the coupling of RF signals from walkie talkies, mobile phones, base stations, etc. to the test object.
Simulate the RF interference caused by the coupling of RF signals from walkie talkies, mobile phones, base stations, etc. to the test object.
electrostatic discharge
Radio frequency radiation
EFT
lightning surge
RF conduction
Power Frequency Magnetic Field
Pulse magnetic field
Damped Oscillatory Magnetic Field
AC voltage drop
Ring wave Common mode conduction Damped oscillation wave Differential mode immunity DC voltage drop Impulse voltage
Radiated Disturbance
Conducted Disturbance
1、频率范围：150kHz~300MHz
2、支持电源线、信号线射频传导试验
3、注入效率高
4、尺寸小巧
5、全频段阻抗匹配

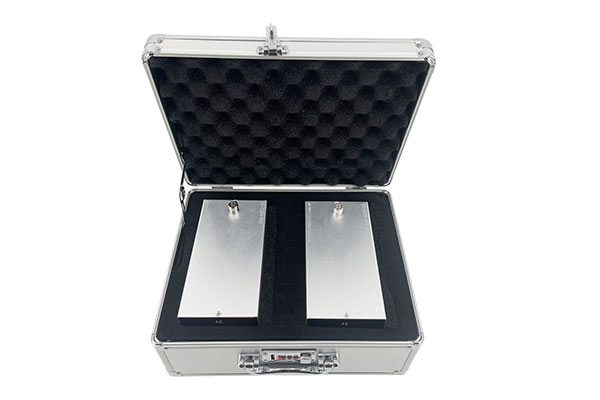

6、标配校准件
| 额定容量 | |
| 交流电压AC max | 260V |
| 直流电压DC max | 110V |
| 电流 | 20A |
| 耐压 | 3kV，60s |
| 共模阻抗（EUT端口） | |
| 150kHz~26MHz | 150Ω±20Ω |
| 26MHz~80MHz | 150Ω+60Ω/-45Ω |
| 80MHz~300MHz | 150Ω±20Ω |
| 序号 | 型号 | 电源线端口 | 最大工作电压 | *最大工作电流（可选择） |
| 1 | ES-CDN-M1* | LN/DC | AC：0~260V DC：0~300V |
A:20A B:32A C:63A D:100A E:200A |
| 2 | ES-CDN-M2* | LN/DC-DC | AC：0~260V DC：0~300V | |
| 3 | ES-CDN-M3*-3L | 3L | AC：0~440V | |
| 4 | ES-CDN-M3*-LNPE | LNPE | AC：0~260V | |
| 5 | ES-CDN-M4*-3LN | 3LN | AC：0~440V | |
| 6 | ES-CDN-M4*-3LNPE | 3LPE | AC：0~440V | |
| 7 | ES-CDN-M5* | 3LNPE | AC：0~440V |
